Face Mill VS End Mill_ What Are The Key Differences
In the metal removal process, milling uses rotary cutters which separate extra portions from input material in an efficient way. Manufacturing companies rely heavily on milling operations to perform accurate material swaps. Two common techniques for milling are ideally used nowadays. These are end milling vs face milling. The end mills can perform the jobs of face mills, but face mills are limited to carrying out the latter task. These carving means show comparable external traits yet comprise significant functional distinctions in terms of tooling, face mill vs end mill.
In this blog, we will look into their major operations, selection criteria, key differences, major applications, and pros and cons. Engineers utilize all such information to evaluate better their final selection, which considerably impacts their end product.
What is a Face Mill?

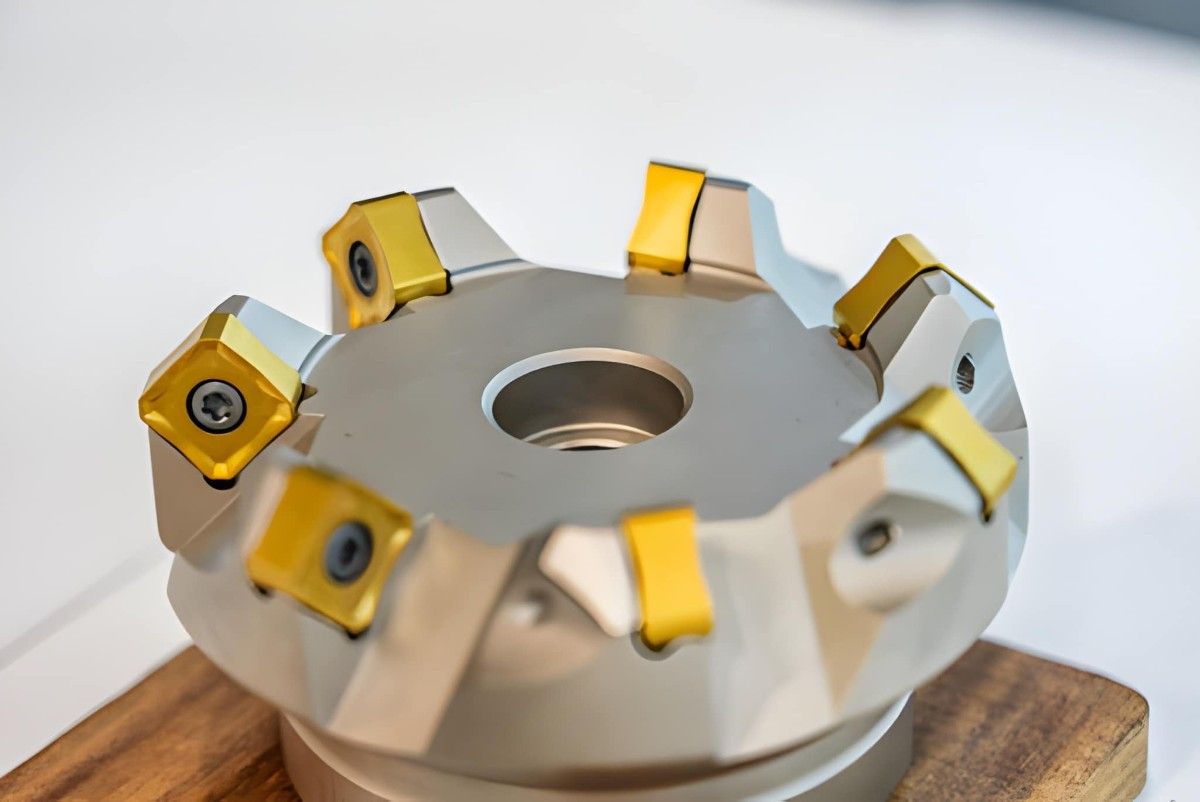

Face mills employ a circular cutting head. It uses a variety of interchangeable inserts. Ceramic and carbide inserts form the basis of efficient material removal from broad flat surfaces. Stability is the core focus of face mill design. Because the cutting edges are distributed evenly throughout each cutting motion. The dimensions of face mills extend from 50 mm to 200 mm according to their designated purposes. Besides, the tool geometry enables fast operation with accurate cuts. The tools enable CNC machine operators to achieve accuracy in intricate machining jobs. Following are some of the common types of face mills:
- Shell Face Mill
- Standard Face Mill
- High-Feed Face Mill
- 45 Degree Face Mill
- Indexable Face Mill
- Radius Tipped
- Chamfer Tipped
- Square End Tipped
- Ball Nose

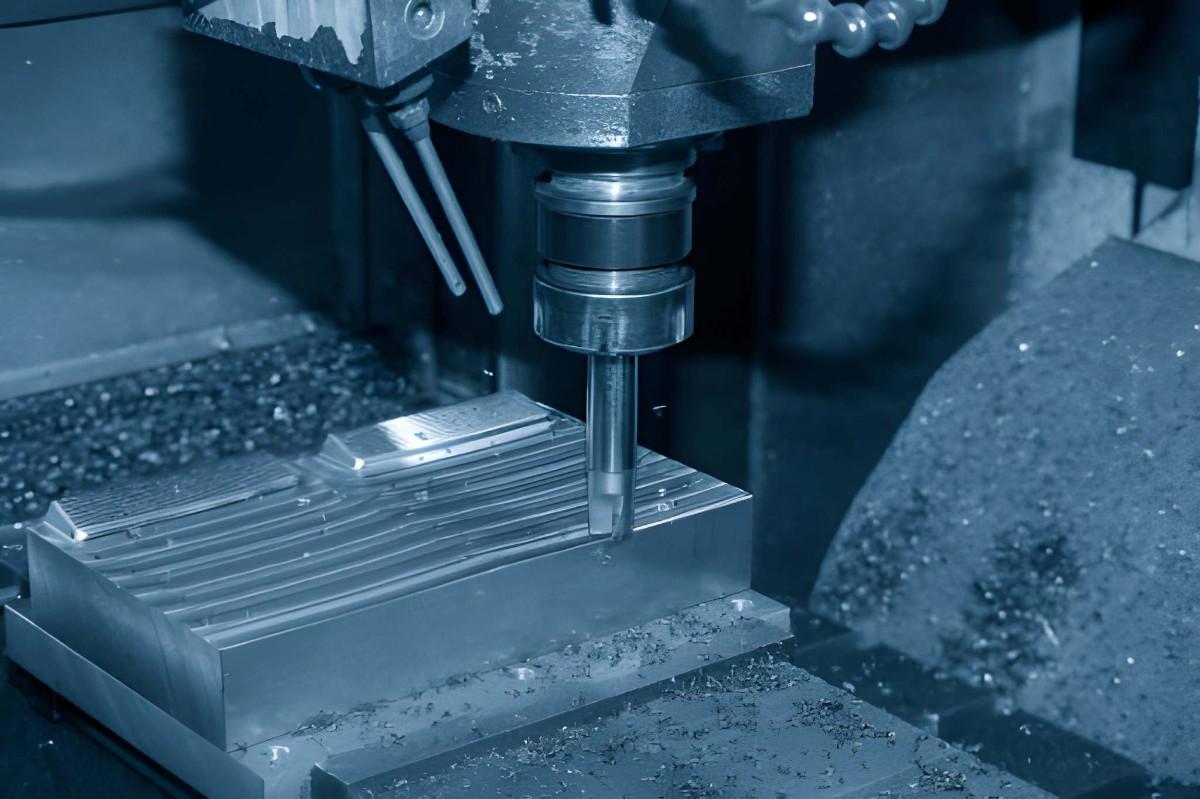

Applications of Face Milling in CNC Machining
The main strength of face mills lies in their ability to machine flat surfaces. The manufacturing sector uses face milling in aerospace, and automotive applications along with mold-making operations. Moreover, you can incorporate these mills to finish mold bases, flatten engine blocks, and make surfaces for assembly work. The tool functions as an essential base for reaching workpiece finish quality along with precision. These enable machinists to execute roughing by integrating material characteristics with cutting parameter settings.
Why Face Mills Are a Go-To For Machinists?
The tools perform multiple cuts over extensive areas during one operation. The accelerated production time is an added benefit. The multiple cutting inserts on the end mill tool design equate to material removal across the entire tool length. Uniformity in operation also extends its operational lifespan. Face mills create outstanding surface finishes that can reach roughness values at 0.8 µm.

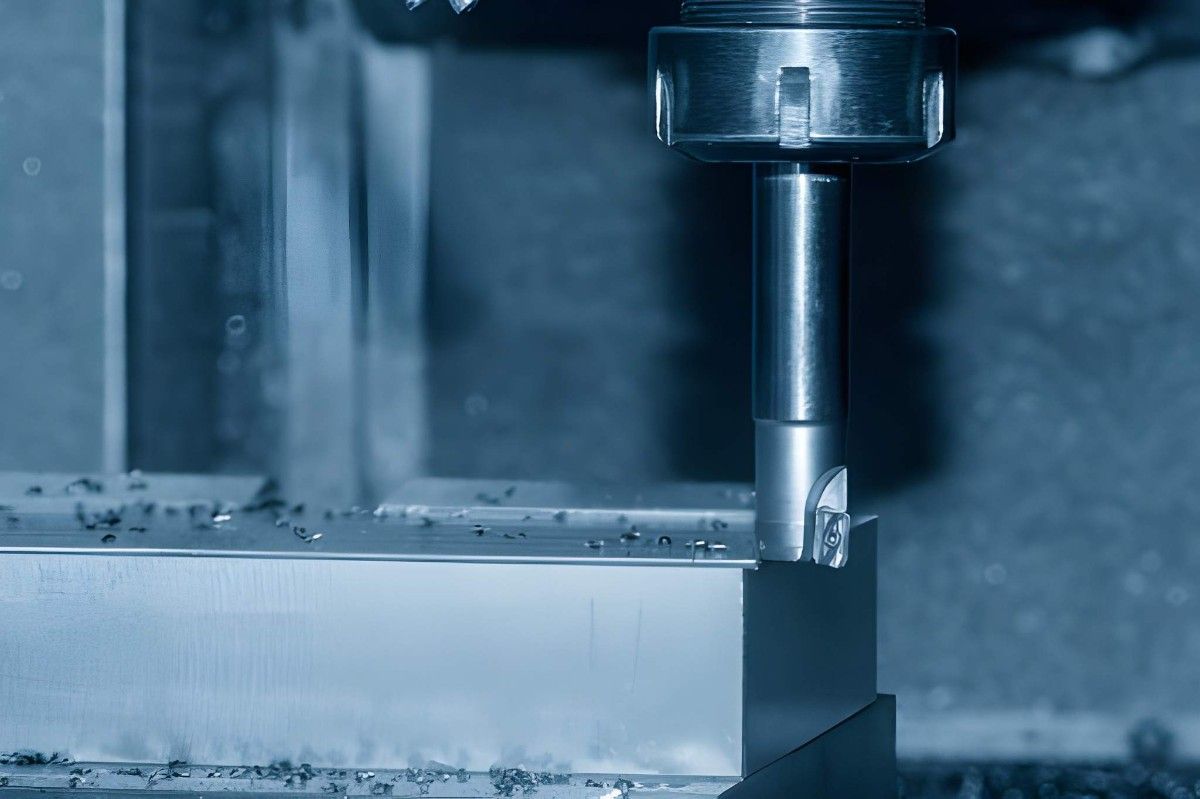

What is an End Mill?
End mills present a cylindrical form with their cutting edges distributed across their sides and their pointed tip. Three main end mill designs serve different approaches in machining operations including ball-nose, corner-radius, and square-end configurations. These tools deliver optimal flexibility because of their ease of efficiency when used in vertical and horizontal positions. The dimensional spectrum for standard end mills extends from 1 mm to 20 mm. Manufacturers require different flute configurations as per intended use.
Durability and intense operation resistance come from high-speed steel (HSS) and carbide materials while coated versions with TiN or DLC increase performance. Below mentioned are some of the common types of End Mills:
- Ball Nose End Mill
- Corner Radius End Mill
- Square End Mill
- Roughing End Mill
- Tapered end mill
- Keyway end mill
Benefits of End Mills
These tools provide machining precision beyond any tool available today. End mills demonstrate exceptional accuracy by maintaining tight tolerance ranges at ±0.01 mm which suits precise applications. One tool can perform multiple machining operations. Engineers choose end mills due to their multivariate capabilities which decreases the need to change tools frequently. End mills come in different coating options and design variations. Overall, such variations are solely dependent on application needs.
Comparison Between Face Mill Vs End Mill
However, the operation and benefits of face mill vs end mill are similar. But in manufacturing, various complex designs need specially dedicated tools to obtain such precision levels. Following are some of such properties which separate their purpose. Let’s take a look at them:
Property | Face Mill | End Mill |
Tool Engagement | Engages the workpiece radially to remove maximum material through one pass. | Approaches radially, and axially, intending for intricate cuts. |
Helix Angle | Manufacturers use these mills for precise shallow cuts because their helix angle stays below zero or reaches zero. | This tool features a higher helical design. Professionals choose these tools to perform deep cuts that yield smooth finish results. |
Chip Formation | The extensive area of contact provides tools with extended chip formation duration and slow-cutting speed characteristics. | They produce shorter chips comparatively. They ensure accurate material removal and precision in their single go. |
Cutting Direction | Engineers prefer these mills for making smooth flat surfaces. So, they work in a horizontal plane. | These tools perform vertical and horizontal cuts according to specific project needs. |
Cutting Depth | These tools demonstrate their strength in creating shallow cuts reaching depths between 1 to 4 millimeters for each operation. | These tools perform efficiently on deep as well as shallow cuts up to 20 mm. |
Surface Finish | They produce fewer tool marks, producing a smooth surface finish. Because of that, manufacturers prefer them in milling large surfaces. | High tolerances and complex designs are achieved using these mills. |
Speed and Feed | For efficient milling operation, they work at higher rotational speed and low feed rate. | They can work at both input conditions i.e.,. High and low speed/feed rate. Overall, they are versatile. |
Application Focus | Engine blocks and mold applications require these mills for their ability to produce smooth flat facings. | Complex 3D shapes benefit from these tools through slotting operations creation tasks and contour applications.
|
Tool Geometry | Circular and wide head with the option for various interchangeable inserts. | Cylindrical shape design with flute integration to make them optimal for tip or side milling.
|
Material Suitability | Preferred for large bodies and hard workpiece material. | Preferred for both hard and soft workpieces to be milled. |
The comparison above provides certain factors to help professionals in deciding the best option for their required project. If you are still unsure about the right tool for your work. Our experts will help you find the most suitable milling tools for your production needs.
Face Mill vs End Mill: Key Similarities
Besides the difference, there are also many similarities in both milling operations. These involve their functioning, cutting parameters, and additional requirements. Let’s discuss the commonness of each process:
Tool Materials and Coatings
Carbide and high-speed steel (HSS) materials serve as the primary manufacturing components for both tools. The application of TiN and TiAlN coatings provides both tools with improved wear resistance capabilities. The materials together with coatings enable these tools to deliver high performance under challenging conditions.
Cooling and Lubrication
Proper cooling remains a vital requirement for operating face mills vs end mills. The use of coolant produces multiple benefits including heat reduction, lower tool wear, and enhanced cutting performance. The tools require effective cooling systems to achieve optimal performance while extending their operational lifespan.
Precision Machining
The tools achieve precise results when their operating conditions remain within specified limits. The flat and uniform results come from face mills. Contrarily, end mills produce intricate and detailed applications. Precision machining depends on these tools because they deliver precise tolerance control.
Material Compatibility
The materials processing capabilities of both types of mills extend throughout multiple material types. Machinists use these tools to machine steel and aluminum metals as well as non-metallic materials such as plastics. These tools show flexibility in producing consistent outcomes across different machining conditions.
Integration with CNC technology
Modern CNC machines feature complete compatibility with both concerned mills. These tools connect directly to CAD/CAM software to provide exact programming solutions for hard-to-make designs. The combined use of these tools leads to efficient and consistent production results across manufacturing processes that handle large volumes.
Face Mill vs End Mill: Key Differences
Here are the key differences between face mills vs end mills:
Design and Cutting Operation
Broad cutting heads on face mill tools incorporate several inserts for their design. The tool operates with exceptional effectiveness to perform flat surface operations. Larger production jobs require face mills because their size measures between 50 mm to 200 mm.
The cylindrical design of end mills dictates cutting edges that extend across their side and tip surfaces. The three primary operations of these mills involve creating slots and grooves along with making precise profile shapes.
How Mills Handle Surface Finish?
Face mills deliver relatively top-quality surface finishes on large areas through their high-quality inserts. Machinists use a face mill to achieve low surface roughness below 0.8 µm. Flat surfaces can be precisely obtained through these tools.
On the other side, end mills achieve detailed fabrication with both accurate machining and narrow tolerance capabilities. Their operational tolerance falls between ±0.01 mm. These fabrication tools achieve exceptional results in addition to producing small precise components.
Tool Flexibility and Applications
The face mill gives effective end-results during the processing of large flat components mold bases and engine blocks. While, end mills provide versatility to perform machining pocket-cutting, cavity generation, and contour work. These processes’ precise shape-generation capabilities make both suitable for automotive, medical, and electronic applications.
Milling Depth Procedures
When operating with face mills manufacturers can efficiently produce cuts at depths of 1 mm to 4 mm. A single end mill pass allows users to cut through materials to a maximum depth of 20 mm. The end mill serves machinists well because it delivers flexibility during complex machining operations.
Deciding between End Mill and Face Mill
Although there are several criteria in which a proper mill can be selected. But the following are the most common ones that can be formed as a basis for comparison.
Material Type
Face mills demonstrate peak performance when operated on challenging material types. These tools produce exceptional outcomes with steel, cast iron, and aluminum. The chosen procedures produce surfaces that become both flat and uniform.
End mills demonstrate exceptional performance for working with softer materials. These tools feature precise engineering which produces clean cuts together with minimal material warping.
Workpiece Geometry
The machining industry depends on face mills to create large flat surfaces. Engine blocks, mold bases, and flat workpieces are among the best applications for this tool type.
The complex forms that end mills can handle include intricate components and tight corner features. The cylindrical design of these tools provides exact slot and pocket-cutting functions.
Surface Finish Requirements
A face mill generates outstanding surface quality when used across broad surfaces. Engineers use multiple insert cutting heads as per operation requirements. The flatness requirements of 0.8 µm serve projects that depend on uniform surfaces.
End mills provide excellent capabilities for generating detailed features within confined operational areas. Due to this, they are the essential tool for producing intricate designs and sharp edges.
Production Efficiency
The face mill leads to lower production times in high-volume processes because it requires fewer passes to finish a work area. End mills demonstrate superior versatility when machining intricate small-scale features across manufacturing operations.
Your material and geometry assessment plus production requirements will help you determine which tool delivers the best results.
Tools for Face/End Mill Operation
Both types of mills require almost similar tools or attachments for precise operations. Below mentioned are the main ones:
- Coolant system: Workpieces and tools require a cooling system to avoid any wearing and give efficient results.
- Tool Holder: The tool holder uses a secure attachment to the machine spindle which provides stability throughout the machining process.
- Milling/CNC Machine: The machine delivers specific control for manufacturing complex workpieces and extended flat surfaces.
- Replacement Inserts: The tool has quick replaceable features for worn-out, and dull inserts which maintain cutting performance consistency.
- Size Measuring Instruments: The setup includes calipers along with surface roughness gauges to inspect both tolerances and surface quality.
- Chip Removal System: The system prevents tool damage by removing chips from the cutting zone which leads to maximized productivity.
Significance of Maintaining Tools for High Performance
Maintaining tools is imperative for high tool performance. Here are the reasons:
Tools Cleaning and Storage
Clean milling tools maintain accuracy while producing efficient work. Either a soft brush or compressed air can clean cutting edges by removing chips, dust, and residue. Protective cases serve to keep tools safe from both damage and corrosion.
High-carbon steel tools require rust-preventive sprays for protection in areas with high humidity. Proper maintenance practices prevent both expensive tool replacements and ensure operational reliability.
Long Tool Life
Regular inspections of tool edges find wear before equipment failures occur during machining operations. Users must either sharpen their tools right away or replace the inserts to maintain exact work. Your tools maintain safety if you operate at the speeds and feed rates indicated by the manufacturer. Regular maintenance procedures for your milling machine extend the operating life of your tools.
Summary
The selection of appropriate tools depends on your in-hand machining project. Face mills demonstrate exceptional performance when producing extended flat components at high speed while maintaining precision. End mills enable manufacturers to create intricate shapes which result in complex-shaped products. For selection between both mills, it is preferred to evaluate workpiece material, output shape requirement, machining time, and production scale. The selection of matching tools delivers improved operational efficiency together with decreased costs which leads to superior machining outcomes.
Ready to take your operations to the next level? Our professionals are PremiumParts will give you cutting-edge milling solutions that confirm precision, efficiency, and quality.
FAQ’s
Q1: Critical distinctions exist between face and end mills: which tools should you select for your machining project?
Surface machining applications require face mills whereas delicate detailed work requires end mills.
Q2: Do face mills have the capacity to execute end-mill applications?
Face mills deliver optimal results in flat surface machining operations yet demonstrate limited capability for detailed work applications.
Q3: What industries select face milling tools instead of end milling tools?
Face milling remains the preferred choice for the automotive and aerospace sectors to machine mold bases and engine blocks because of their uniform size requirements.
Q4: What elements affect the lifespan of this tool?
When maintenance practices, correct cutting speeds, and timely insert replacement are utilized the operational life of tools becomes longer.
