Injection molding is an essential manufacturing process in the plastic fabrication industry. Whether you’re an engineer, manufacturer, or designer, you’ve probably relied on it for producing complex precise parts/products. The inner workings of an injection molding machine remain a mystery to most people. The process behind injection molding goes beyond simple magic. It demonstrates sophisticated engineering design. Understanding injection molding requires examining its essential components that drive operational efficiency and reliability.

Components of an Injection Molding Machine

An injection molding machine consists of multiple essential components which work together. These components operate according to a defined sequence to transform raw materials into final products. Here’s a quick overview:

Injection Molding Machine

Injection Molding Machine

Injection Unit

The injection unit combines the functions of heating raw plastic materials before pushing them into the mold. This heated material takes product shape. Moreover, the system enables accurate heating and precise material delivery.

Clamping Unit

A tightly sealed mold environment exists because of the clamping component during the material injection. Consequently, the mold system stops plastic material from escaping outside the mold.

Mold

The melted plastic takes the desired product shape during this crucial process step. Overall, In this regard, product design depends on the mold to achieve its final form.

Ejector System

The ejector system functions to extract completed parts from their mold. In addition, smooth and fast part extraction becomes possible through this system. An optimal ejector allows the ejection of products without interruptions.

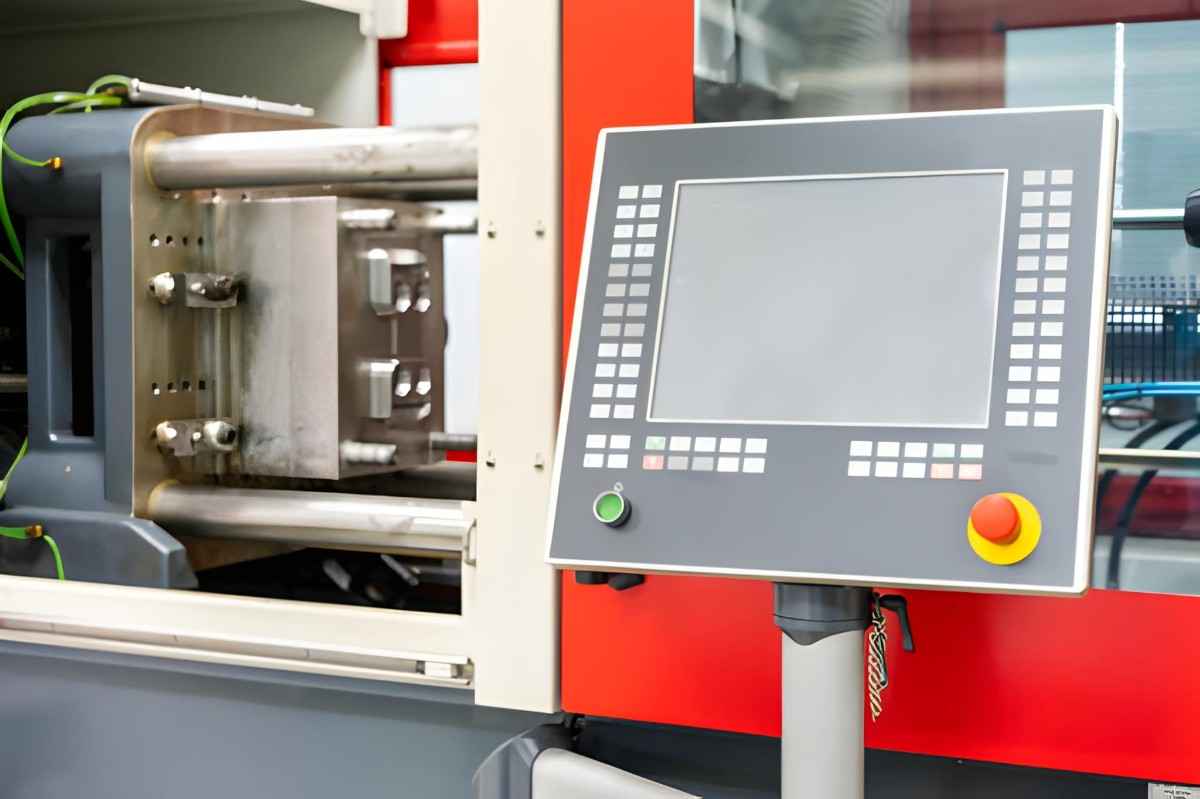

Control Panel

Users control temperature, pressure, and cycle time parameters on the machine through its control panel. Through the control panel operators achieve precise process adjustments.

Base/Frame

This fundamental structure serves as the base component which supports all other elements. During operation, this system provides stability which leads to machine durability.

The understanding of these elements allows users to enhance operational efficiency and produce exact results. Each component plays an indispensable part in producing flawless products regardless if you need to diagnose problems or create molds.

Premium parts produced specifically for durability and efficiency will improve your manufacturing results. Reach out to us now for superior molding solution development.

Types of Injection Molds

The selection of an injection mold requires understanding various available mold types. The various mold types fulfill distinct functions to optimize efficiency as well as product quality improvement.

Cold Runner Molds

The channels within cold runner molds transport molten materials toward the cavity. Their straightforward operation and affordable nature make them appropriate for manufacturing operations producing limited to average-volume products.

Hot Runner Molds

Hot runner molds operate at the correct temperature to preserve molten plastic thus minimizing material loss. Such molds deliver consistent results across large-scale production volumes because of their excellent performance.

Two Shot Molds

With two-shot molds, manufacturers can process multiple materials through a single manufacturing operation. The method delivers exceptional results when working with complex parts using various materials. This upgrades both versatility and precision.

Prototype Molds

Prototype molds serve as tools for creating production batches along with functional testing. The production process enables manufacturers to refine their designs rapidly before they start large-scale manufacturing.

Taking the correct mold selection will optimize your product’s manufacturing efficiency along with reducing production costs. Does your project require injection molds? Contact our team right now to access our high-quality customized solutions which will optimize your manufacturing operations.

Common Injection Mold Components

Among all the parts of an injection molding machine, the mold is the most important one. Accuracy, surface finish, quick molding, and other important features are primarily dependent on mold selection and functioning. For this, there are various attachments utilized by manufacturers to ensure the accurate working of mold. Let’s look into its main components:

Injection Mold Components

Injection Mold Components

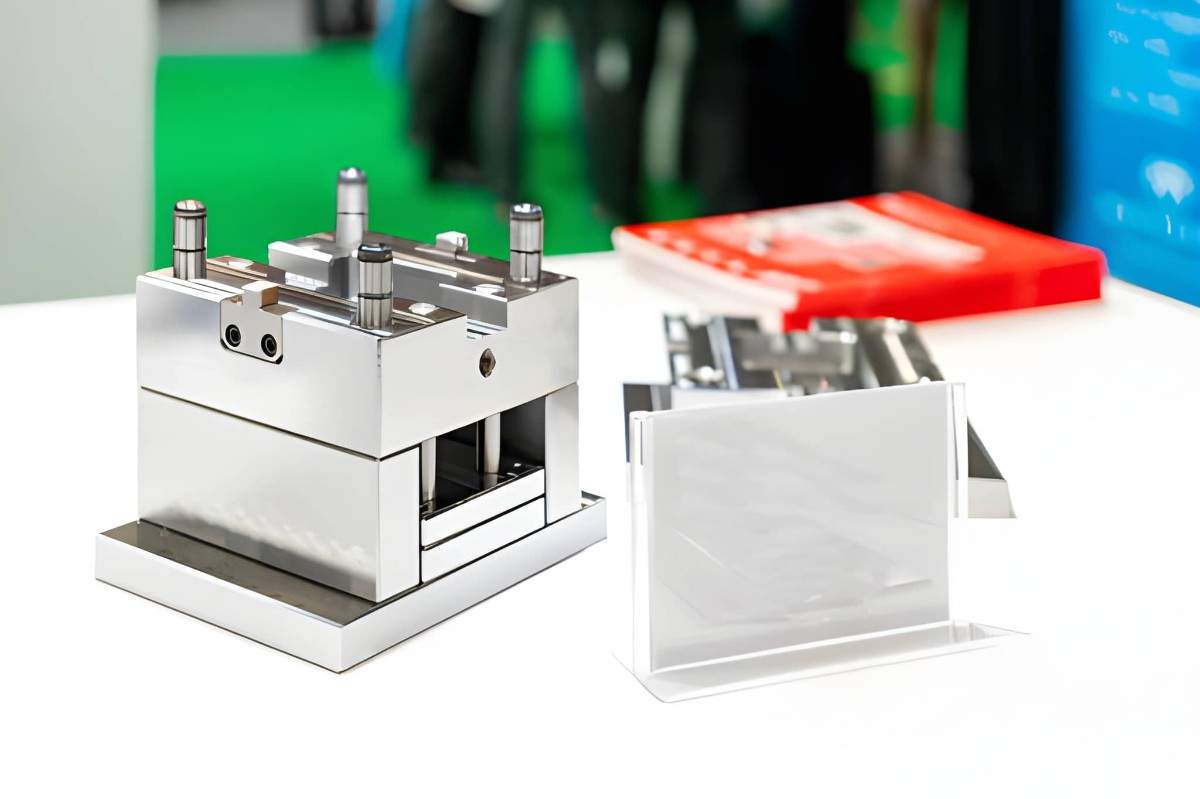

Mold Base

An injection mold requires a mold base that acts as its fundamental supporting framework. All essential mold components such as cavity, core, and housing structure receive support from mold bases. This helps engineers design for manufacturing purposes. Mold bases use P20 or H13 steel as their manufacturing materials. These steel materials manage to combine superior strength performance with extended lifetime characteristics.

Mold bases include specific engineering elements that prevent equipment alignment issues in high-pressure operations. The distribution of clamping forces through support pillars results in better performance outcomes. Manufacturers select their bases featuring accurate machining tolerances around ±0.01 mm for performance assurance.

Cavity

The cavity dimension shapes the external structure of molded products. Engineers make cavity designs precise because the accuracy determines both product surface quality and dimensional specifications. The combination of H13 steel and beryllium copper alloys serves as the preferred cavity materials. The resulting alloys demonstrate advantages in wear resistance and thermal conductivity.

High-end computer numerical control machines produce cavities with precision levels reaching ±0.005 mm accuracy. Further, they are coated using titanium nitride to enhance corrosion resistance and increase product longevity. Engineers integrate venting channels into designs to stop trapped air while delivering high-quality performance outcomes.

Core

The internal design of molded parts depends on the core structure. The process links the cavity to the core for creating specific shapes of the product. H13 steel and SKD61 materials form core parts because of their impressive strength along with durability characteristics.

The core design includes integrated cooling channels. It allows them to spread temperature control evenly through manufactured parts. Molded cycle times become faster while shrinkage defects decrease because of these integrated cooling channels. High-pressure molding operations benefit from chromium plating. Manufacturers perform this plating to extend core service life by reducing wear.

Ejection Pins

After cooling the molded part the ejection pins operate to extract it from the cavity. Special processing of steel ejection pins creates protective wear-resistant hardness. Besides, it also assists in maintaining consistent mechanical performance.

In addition, different ejection systems use straight pins, stepped pins, or sleeve ejectors which match the specific geometries of parts. Precision machining techniques deliver consistent ejection power distribution. Such activity protects molded parts from damage.

Inserts

Engineering teams gain mold flexibility through inserts. They are interchangeable to modify particular mold areas, increasing their applications. These core components provide critical functionality when creating customized products.

Inserts primarily use tungsten carbide together with tool steel materials. Their resulting alloy demonstrates outstanding hardness levels and effective wear resistance properties. A precision range of ±0.01 mm defines the tolerances needed for machining inserts. Inserts quick changeover leads to lower operational downtime. It allows manufacturers to make these devices optimal for manufacturing processes with extensive output.

Runner System

Material flowing from the injection unit reaches the cavity through the runner system. The engineering team optimizes material flow while minimizing waste during design. Two fundamental types exist in the field of plastic injection molding: cold runners and hot runners.

  • Cold runners remain simple and economical yet result in material waste at the point of ejection.
  • Hot runners prevent material solidification thus minimizing production waste while boosting operational efficiency.

Computational fluid dynamics modeling enables researchers to develop the best possible runner systems. The resulting material distribution patterns become uniform. Runner design following ISO standards results in better part quality consistency and shorter cycle times.

Cooling System

The cooling system controls temperatures across the entire molding duration in a stable manner. As a result, a properly controlled cooling regime helps shorten production cycles. Moreover, it also helps machinists to stop shape alterations. Additive manufacturing technologies enable the creation of accurate cooling channels. Produced channels precisely remove heat from complex mold components.

Engineering experts build corrosion-resistant cooling systems from stainless steel materials. Efficient cooling layout designs created using advanced thermal analysis tools shorten production cycles by approximately 30%. Correct cooling techniques can considerably improve product quality and extend the potential lifetime of molds.

Venting System

A venting system releases trapped air and gases from injection processes. For instance, through strategic positioning of vents, engineers optimize material flow along parting lines and cavity edges. The average opening size of venting gaps falls in the 0.02 mm to 0.05 mm range. Gap permits air passage without permitting material passage.

Poor venting design leads to product burn marks, incomplete material filling, and visible weld lines. Simulation tools evaluate venting system performance enabling engineers to make accurate modifications. The correct placement of vents helps maintain high-quality parts. Additionally, they also avoid expensive product defects.

Mold Interlocks

Mold interlocking mechanisms maintain the exact positioning of the mold’s two parts during operation. Otherwise, problems in alignment lead to product defects and greater mold wear.  These defects shorten the mold’s useful lifespan.

Interlocks come in two standard configurations including straight versions and tapered ones. Straight interlocks provide basic alignment.  Additionally, the tapered interlocking mechanism helps achieve automatic self-centering which benefits complex mold designs.

Guiding System

The guiding system enables precise movement of mold halves in a smooth fashion. Likewise, both guide pins and bushings function to maintain precise alignment when operating the mold.

The hardened steel guide pins alongside low-friction bronze components in bushings represent a fundamental design principle. Thus, The exact alignment capabilities from precision machining decrease mold wear and increase performance. A mold’s operational life expectancy depends heavily on the effectiveness of its guiding system.

Design Considerations for Injection Mold

Injection mold design demands both high-precision work and absolute attention to specific details. Engineers and manufacturers face manufacturing challenges when they make any type of oversight. The following section examines vital factors that lead to successful mold design execution.

Material Selection

When selecting mold materials, designers need to choose which demonstrate excellence in supporting high-pressure operations alongside temperature requirements. Aluminum together with steel represents popular choices for extended product longevity.

Wall Thickness

A uniform wall thickness distribution must exist throughout the entire mold structure. The uniformity of mold walls reduces the occurrence of defects that cause warping or yield uneven cooling patterns.

Draft Angles

Simplified part extraction becomes possible by giving mold walls gentle inclines. The addition of draft angles to mold design helps parts slide out without sticking and lessens their resistance to ejection.

Gate Location

The correct material flow depends on placing gates strategically. Otherwise, when gates are placed incorrectly the part develops weak areas and voids.

Cooling System

Temperature control requires effective channels in cooling regulation system design. The implementation of proper cooling methods delivers both faster cycle times and better part quality output.

Tolerances

The technical specifications demand precise control for dimensional accuracy. The success of such designs depends heavily on precise gate placement for complex shapes and tight-fitting components.

The examination of these components leads to optimized production with reduced waste and enhanced operational efficiency. The performance reliability of your mold depends on a design that receives proper planning.

Common Materials for Mold Applications

For the optimal operation of every component, manufacturers must select appropriate materials. Now, there are a variety of materials that are recommended as per application needs. The following are the major materials used for designing injection mold parts:



Material Key Properties Applications Standards/Specifications
P20 Steel Moderate wear resistance, good machinability, and pre-hardened structure. Preferred in making large molds, and their bases.



DIN 1.2311, AISI P20
H13 Steel Good toughness, High thermal fatigue resistance, and hardness. Optimal for hot-runner molds, cavities, and cores.



AISI H13, ASTM A681
Stainless Steel Good thermal conductivity, and high wear resistance. Preferred in mold components to avoid wear.



ASTM A240, SUS 420
Beryllium Copper Good thermal conductivity, easy machining, and high wear resistance.



Utilized for cores, inserts, and other intricate components. ASTM B194, C17200
Aluminum Alloys Easy machining, good thermal conductivity, low weight.



Optimal for molds used for low-scale production, and prototypes.



6061-T6, 7075-T6
Tungsten Carbide Preferred for abrasive environment. High wear resistance. Preferred for precise inserts, cores, and cutting edges of mold.



ISO 9001-certified grades
SKD61 Tool Steel High toughness and thermal cracking resistance. Used for molds that need to withstand higher temperature JIS SKD61
Polymer Composites Easy machining, Lightweight, and Cheaper



Utilized for temporary tooling, or prototype molds Varies depending on the polymer

Final Summary

The versatile nature of injection molding demands exact mold designs to achieve both high-quality results and efficient production. Every component in the injection molding production chain affects both operational efficiency and product performance through their selection and implementation. The successful operation of single-cavity, multi-cavity, or family molds depends on a focus on design considerations.

Ready to optimize your manufacturing operation? Our Professional Team will assist you in getting customized, high-quality solutions that ensure efficiency, precision, and reliability.

FAQs

Q1: How Molds are produced in manufacturing companies?

The production of molds occurs by combining CNC machining with electrical discharge machining (EDM) and 3D printing methods.

Q2: Types of materials used to make molds.

The production of molds incorporates P20 steel alongside hardened tool steel and aluminum and beryllium copper as common materials. Manufacturers select their material based on production volumes and also on requirements for durability and expense considerations.

Q3: What functions do injection molds need gates to perform?

The gate system functions to manage the pathway of liquid plastic when it enters the mold cavity. The gate system maintains consistent material distribution while eliminating product faults to enhance final part quality.

Q4: Single-Cavity vs. Multi-Cavity vs. Family Injection Molds: How do they differ?

Single-Cavity Molds: Produce one part per cycle. Ideal for small-scale production.

Multi-Cavity Molds: Through multi-part production per cycle manufacturers can boost their output.

Family Molds: Single-cycle production of multiple product variations enables cost efficiency though it demands precise design equilibrium.
