Multi Cavity Mold Vs Family Mold: What Are The Differences?
Injection Molding helps make precise parts because it gives consistent and exact results. The kind of mold you pick affects how well your product works and whether it fits into your spending plan, regardless of what industry you work in – aerospace, automotive, or medical. Among today’s manufacturing companies, manufacturers pick between using multi-cavity molds and family molds to make their products. Knowing what makes each mold unique helps you run your production process better.
Using multi cavity molds allows you to create many products quickly, all in one run. You can make many identical pieces in a single operation with this mold. It works best when you need to make many products quickly and keep the price and quality high. Unlike family molds, multi cavity molds allow the manufacturer to make multiple types of products or parts in one production run. You can make better use of materials while creating more products with this tool. Using this method cuts production expenses by reducing the need to create new molds when making different types of parts.
In this article, we will explain the major distinctions between cavity mold vs family mold. Aside from this, we will also provide each technology’s pros and cons, and their industrial uses.
What is a Multi Cavity Mold?

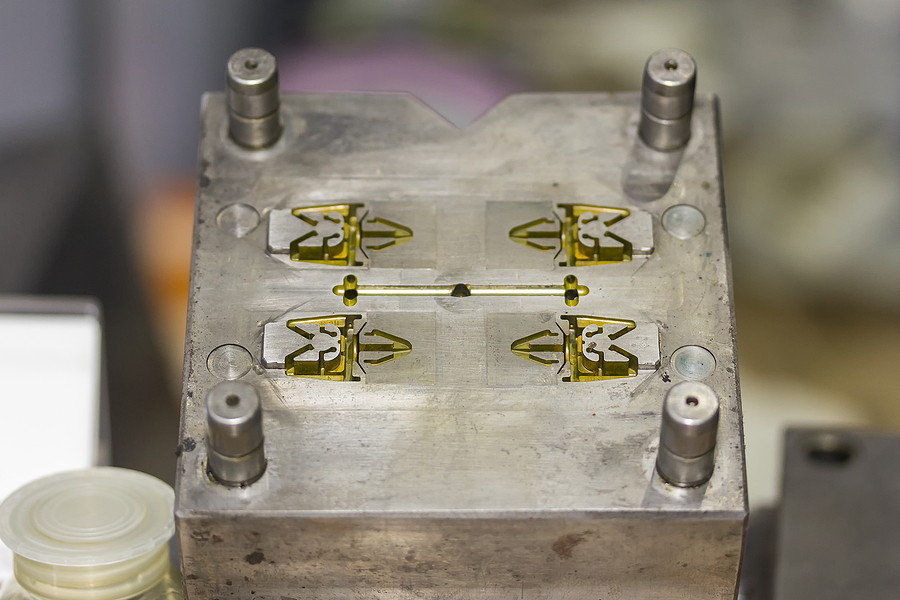

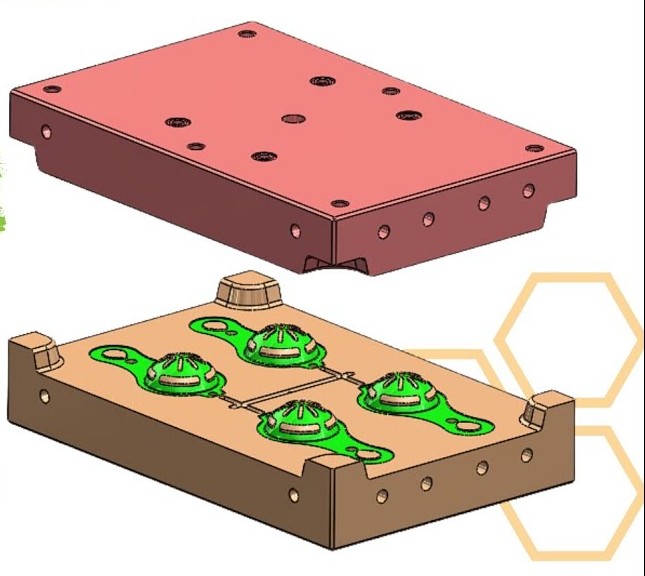

Multi Cavity Molds serve as the main tool for producing large numbers of alike products. The molds work together to form several exact parts at once which speeds up manufacturing time. Industrialists build molds with multiple parts sections to make identical components in a single factory cycle. The mold can make 2 to 16 copies of the same part, depending on what the production needs and product demands ask for. Molds follow ISO 9001 quality standards so they can make the same good quality products each time. They produce very precise results, with variations between parts staying within these ranges: ± 0.02 mm and ± 0.05 mm.
How Multi Cavity Molds Work?
Let’s take a look at the steps involved in the multiple cavity mold process:
- Designing the Mold
- Mold Construction
- Injection Molding
- Cooling
- Ejection

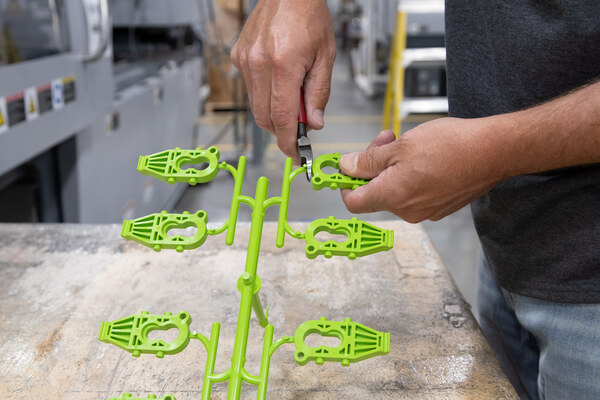

- Post-Processing
Each cavity inside a multi cavity mold forms the same part repeatedly to maintain quality consistency. The molds speed up production by giving large output in comparatively less time while maintaining exact part specifications. The consumer goods, electronics, and packaging fields use multi-cavity molds as their preferred method for rapid mass production.
Companies that Stand to Benefit From Multi Cavity Molds
Industries operating with plastic based consumer products are significant beneficiaries of multi cavity molds. For instance, automakers need an accurate, and standardized item, primarily used in the dashboard, and small engine parts.
The expense to create these mold tools starts at $ 10,000 and increases to $ 50,000 based on the number and level of detail in the cavities. The initial expense for these molds becomes less per part once production moves to large quantities. The electronics making sector requires multi cavity molds to produce connectors, switches, and small electronic parts in large volumes. Through multi cavity molds, companies can ensure high output and quality of the parts, regardless of the number of molds used.
What is a Family Mold?

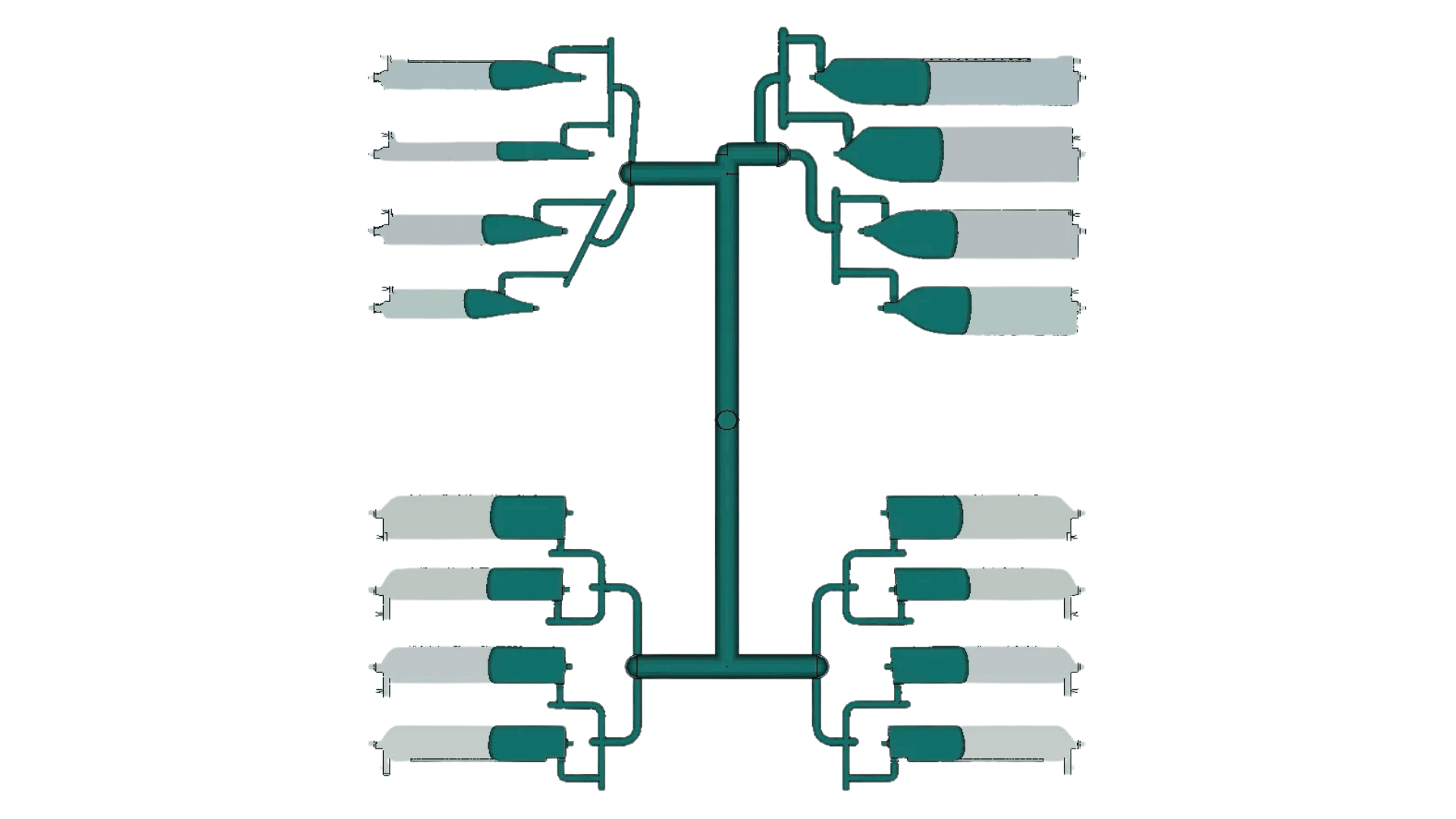

A family mold can create many different parts at one time. Their working procedure is similar to the one mentioned for multi-cavity mold. While in multi-cavity molds, the mold produces the same part, the family molds allow the synthesis of parts, each with its configuration in one production cycle. Multi-cavity molds work both efficiently and economically for output needs.
This allows you to produce various configuration parts that may or may not work together, within a single molding operation. Manufacturers create these molds to cut production expenses and minimize material waste. Each mold section makes one part of the final assembly. They require precise tooling to avoid shrinkage. The size tolerance range for these products typically falls between ± 0.01 mm and ± 0.05 mm depending on application needs and material selection.
How do Family Molds Work?
The mold design arranges cavities according to what they do in the final product. The design of family molds helps manufacturers produce different parts that can later form one complete item. Car dashboards and home appliances rely on family molds to make their interdependent parts.
Molding operators achieve the best results with family molds that create matching parts for single product assemblies. These mold designs reduce production time and operating costs when making consumer goods and electronic products. They are normally designed with 2 to 8 cavities, each with a distinct specification. They meet quality standards by following ISO 9001 and ASTM D647 to deliver exact and long-lasting results to businesses that need high volumes.
Firms that Stand to Benefit From Family Molds
Industries such as the consumer goods and mass production industries make use of family molds, especially in applications that include many different components in one assembly. For instance, in the assembling of a dashboard for automobiles, the family molds can in one cycle create buttons, dials, and housing that will cut time and cost. These systems work better for small to medium businesses because they come at lower costs which range from $ 5,000 to $ 20,000.
Furthermore, consumer electronics producers also employ family molds for the creation of other small parts required for one device including different buttons, covers, and connectors. Thus, constructing a range of parts in one cycle makes family molds rather effective in industries that need a variety of components.

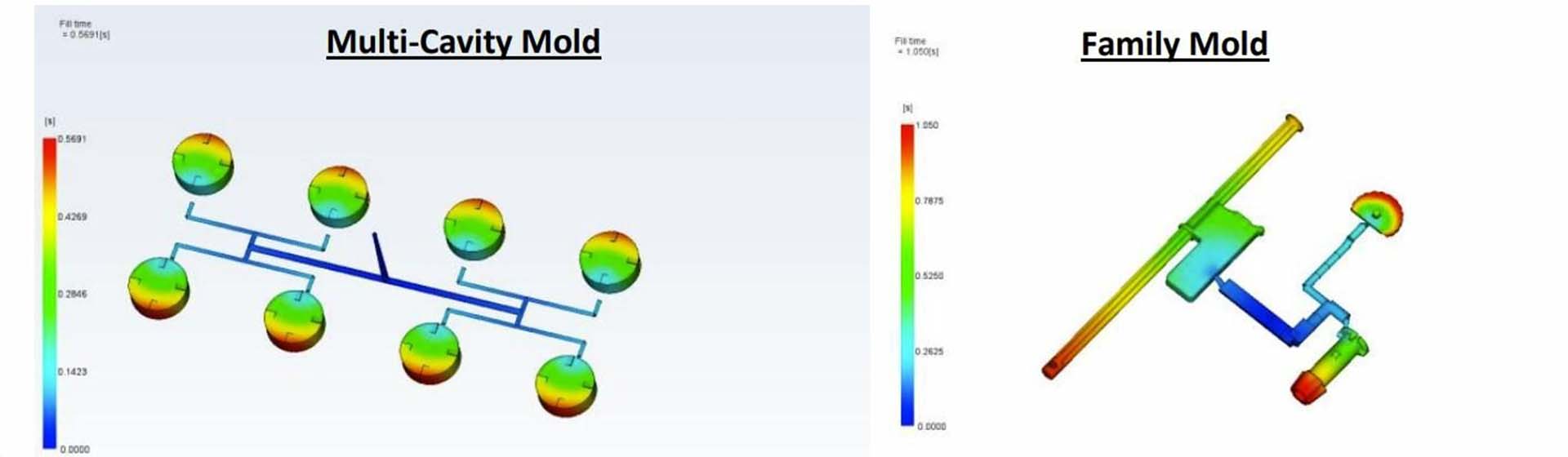

Comparison of Multi Cavity Mold Vs Family Mold
The Multi Cavity Mold Vs Family Mold comparison facilitates the professionals to select between flexibility for diverse parts and high volume uniformity. Let’s look into the key difference between family and multi-cavity molds.
Factors | Multi Cavity Mold | Family Mold |
Mold Type | Produce identical parts using one mold | Produces different parts of varying sizes and shapes using one mold |
Part Uniformity | Maintains high uniformity and accuracy in all parts produced | Create various products with unique dimensions and forms. |
Efficiency | The optimal option for producing large quantities of identical parts. | Less efficient as you need to accommodate multiple parts in one mold |
Complexity | Comparatively easier to design, as all cavities inside the mold are similar, | More complex to make due to every cavity with a different design. |
Cost | Higher initial cost but economical for mass production | Low initial cost but high operating cost. |
Lead Time | Shorter lead/cycle time due to uniformity in cavity design, | Longer lead/cycle time because of design complexity and different shape parts. |
Tooling Requirements | Requires highly accurate tools for similar parts production | Needs a variety of flexible tools to accommodate all part shapes and sizes. |
Multi-Cavity Mold: Benefits and Drawbacks
Let’s discuss some pros and cons of multi cavity molds:
Benefits
- Ideal for high-volume manufacturing processes.
- Shorter cycle times, leading to increased output.
- Due to their reduced price, it is more feasible to make them in large amounts.
- The parts have better quality control because all cavities share the same design.
- Machines spend less time being idle because they make several parts at once.
- Using material more effectively helps cut down on waste.
Drawbacks
- Start with a significant amount of money to purchase exact equipment and plan the mold.
- Only works well for making multiple identical items.
- When one cavity has problems, it risks damaging the entire batch of parts produced.
- These molds’ initial cost and maintenance are considerably higher and more difficult.
- Developing and operating molds requires more time than usual in this situation.
Family Mold: Benefits and Drawbacks
Now, let’s discuss the pros and cons of family molds:
Benefits
- Can make multiple parts at the same time during each run.
- Perfect for creating multiple parts of distinct features in only one molding operation.
- You’ll spend less money when you first make molds with single cavities instead of molds with several cavities.
- Making small batches becomes simpler with easier tooling.
- Good option for making a small to moderate amount of products without spending too much.
- Makes assembly easier by creating several parts at the same time.
Drawbacks
- Slow production speed makes it a poor choice when you need to manufacture large amounts of products.
- The complex shapes of parts make them hard to work with during manufacturing.
- The quality suffers when parts with various shapes and sizes cool and shrink at different rates.
- Having defects in one part of the family mold usually means wasting more material.
- More difficult to set up and operate the mold while keeping all parts of the same quality.
How To Select the Right Mold for Your Need?
There is continuous debate about Multi Cavity Mold vs Family Mold. Choosing the appropriate mold requires considering several important aspects that define the productivity of the process and its cost. Below are the primary criteria to consider when making your decision:
Production Volume
Using multiple mold cavities produces small parts at high volume production rates. These molds produce many identical parts faster which reduces both production time and costs. Packaging industries that need complex durable products benefit most from multi-cavity molds. When manufacturers need to adjust their parts frequently they should use family molds instead.
Part Uniformity
Multi-cavity molds are particularly suitable for making very precise parts since each cavity will make an exact copy of the other. It is particularly important in sectors where quality and tolerance levels are essential, for instance, the packaging and medical equipment sectors. Molds used in the formation of families on the other hand can produce many different parts in a single cycle. They are flexible and can be used to produce multiple parts at once, however, they might not be as consistent as multi-cavity molds when it comes to creating more parts of the similar design.
Speed and rate of production
Family molds create pieces at a slower rate than multi cavity molds do. A multi-cavity tool can produce many parts at once which cuts overall production time to create identical items. Most family molds run slower since they produce multiple parts in one mold with exact size specifications. The system takes more time to produce items while delivering greater product variety. Family molds can create various parts simultaneously even though they take longer to make products.
Cost Considerations
Multi-cavity mold cost is generally higher at the start because the design and tooling processes are complicated. However, they are effective in mass production, making them economical when used in the long run. Family molds may be cheaper because they do not require such sophisticated tooling as the specific ones, but they are not as effective when it comes to large quantities.
Application
When a project needs multiple components in a single mold, choose family molds. This can help you minimize the production time by creating various sections at similar times. They lessen the amount of molds needed, minimizing the operation cost. Contrarily, Multi-cavity molds work perfectly for making identical parts. Such molds are preferable in companies working on mass production, like electronics and automotive. Both provide efficiency and consistency for mass production.
Based on the above factors, it will be easier to decide on the best mold to use when undertaking a certain project. To know which mold is most appropriate for your manufacturing requirements, seek advice from professionals at Premium Parts.
Summary
Deciding between multi cavity mold vs family mold depends on prime factors including part consistency, production volume, and cost-efficiency. Your project will help you in selecting the optimal mold. If you aim to produce a large quantity of similar products, use multi-activity molds. They are optimal in providing consistent quality and precision for high-volume production. But, if you aim to produce a variety of items in less time, family molds are the option for you. Because family molds are more appropriate for the following reasons: flexibility and multiple parts production in a single cycle. You should bear in mind the possible volume of production, the homogeneity of the parts, and the overall expense.
For more queries on the best mold selection and usage, contact our professionals at Premium Parts to get the optimal solution for your manufacturing needs.
FAQ
Q1: Which industries require multi-cavity molds in their operations?
Multi-cavity molds dominate industries like medical, electronics, packaging, automotive, and consumer goods industries. These molds ensure the production of thousands of identical items in one cycle.
Q2: Are family molds suitable for application in high-volume production?
Family molds, while more flexible, don’t operate much efficiently in mass production, compared with multi-cavity molds. Their longer lead time makes them less efficient.
Q3: How can I know which mold is suitable for my project?
Consider the part uniformity, production volume, and the cost-volume relationship. Additionally, you can consult professionals at Premium Parts to get expert advice.
Q4: What are the main disadvantages of family molds?
Family molds cause lower productivity in high-volume production because the cycle time is longer and the design of the molds for different parts is challenging.
