Mold Flow Analysis for Improving Product Design
The Mold Flow Analysis aids significant support for manufacturing products by simulating material flow in mold applications. You, as a machinist or engineer, can use a mold analysis approach to make your desired product. Because the virtual material flow simulations allow you an early diagnosis of upcoming production errors. So, you can optimize the actual production before commencing.
In addition, the current product manufacturing market demands high precision and functional improvements, using such Computational analysis helps professionals achieve streamlined manufacturing while cutting down material waste and upgrading product design outcomes. Besides, machinists can do in-process inspection to eliminate product errors and get optimal part/product designs. Furthermore, mold flow analysis is implemented in various sectors mainly manufacturing, and design-based firms.
Now, let’s take a look into further details on its working nature and potential benefits to get a better idea of this analysis procedure.
What Is Mold Flow Analysis?
The Mold Flow Analysis involves simulation options that early predict and show the path of constructing material movement inside the mold. These simulations enable developers to make improvements to their designs and achieve superior outputs during development. Overall, using a concerned analysis method helps you to spot design weaknesses during early development stages so you can optimize process effectiveness before initiating actual production.
In general, manufacturers can use analysis to examine three fundamental aspects including
● Flow paths
● Pressure Distribution
● Cooling Rates.
Moreover, design engineers use element analysis to select optimal mold designs while determining material choices and process parameters. The shaping process of materials through injection molding receives substantial benefits from mold flow analysis. Through visual technique, input material will flow differently under various input conditions, as predicted
to achieve reliable manufacturing results. The elimination of the trial-and-error approach saves both costs while eliminating the probability of product development schedules.
The concerned analysis approach helps to fulfill the exact production needs found in automotive, aerospace sectors, and medical manufacturing settings.
Why Mold Flow Analysis is Essential in Engineering?
For efficient material flow, and to reduce production costs, Product Designers depend heavily on mold flow analysis. They can effectively remove flaws in mold design by incorporating methods to make any actual prototype, which as a result saves material, design time, and production cost. Aside from this, the end users working on a small scale who can’t afford actual product testing get significant gains from it.
In addition, the mold flow analysis system prevents typical manufacturing problems that could damage product quality through warping, shrinkage, and weld lines. You can execute a complete molding process simulation followed by parameter adjustments to reach optimal outcomes. The predictive analysis decreases the probability of expensive redesigns and time-consuming delays.
Several applications demand absolute precision because minor product defects may result in equipment breakdowns. The analysis of mold flow allows industrialists to guarantee their products fulfill strict quality specifications. Additionally, it improves product reliability alongside operational performance and facilitates better collaboration.
Furthermore, the analysis promotes sustainability, since items are produced using automatic design activity, and to minimize material waste and energy consumption. This computational flow analysis enables experts to acquire resource optimization alongside production efficiency gain.
How Mold Flow Analysis Works?

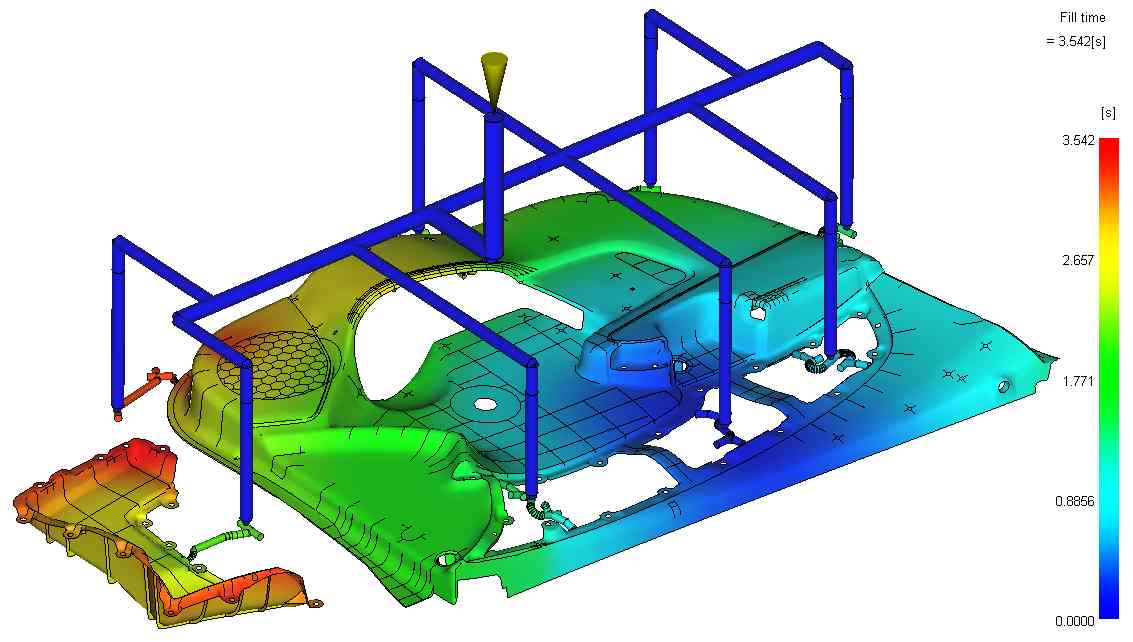

The simulation software evaluates how molten material moves through mold cavities during the analysis process. To better determine the molding activity, experts look at how input material behaves under different conditions like pressure, flow rate, and temperature. Engineers must input detailed specifications about materials and part design together with runner systems and gating positions to the simulation platform. The combination of implemented parameters allows for precise prediction of future injection molding operation challenges.
Simulation Activities and Parameters
The analysis begins by developing a model of injection systems and mold specifications. The software platform uses its predictive capabilities to show flow patterns inside cavities. Output simulation provides better cooling rate and cavity pressure distribution data. Moreover, the designers also get a better understanding of problems that need refinement.
The analysis examines shear stress, identifies potential warpage effects, and calculates shrinkage levels to validate design compliance with standards including ISO 286 and ANSI Y14.5. Reliability excellence through technical evaluation generates precise parts needed in critical industries like automotive and aerospace.
Optimization and Adjustments
Engineers utilized results obtained from mold flow simulations to iterate and get the best design specifications like runner position, diameter, etc. accordingly. The system adjustments both shorten production time and maximize product quality while minimizing energy consumption. Through optimal gate placement engineering teams can obtain a precise flow balance that prevents shortcuts while maintaining an even distribution of filling.
Additionally, professionals can also follow controlled modifications of cooling channel designs to avoid heat dissipation and prevent deformations. For better optimization of mold output, determining its appropriate cooling duration is essential. Normally, simulation software offers you with approximate cooling time as per the provided input. Further, the majority of manufacturers utilize the following formula to estimate cooling time:
Cooling Time = KV𝛥T/Q
In the above equation:
● K = heat transfer coefficient
● V represents mold volume
● 𝛥T is the difference between ejection and melt temperature
● Q presents the material cooling rate.
Proactive Approach to Production
Companies avoid unnecessary monetary loss from the trial-and-error technique. Because mold flow analysis is incorporated right start from the virtual design phase. So, manufacturers use proactive ways to generate high-quality production outcomes that match exact specifications along with stringent industry requirements. Industrialists now use advanced evaluation techniques to increase product quality and make immediate decisions.
Common Software for Mold Simulation Analysis
Several companies employ software that integrates the modeling of such injection molded parts. Following is the list of main pens:
● Solidworks plastics
● Autodesk Moldflow
● ANSYS Polyflow
● Simcon Cadmould
● Moldex3D
Benefits of Mold Flow Analysis
Here are some common benefits of mold flow analysis:
You Can Improve Part Quality
The analysis of molded parts’ behavior enables you to achieve precise management of material movement and useability. Through the computational approach, engineers can identify potential problems in their designs which allows them to keep strict tolerance levels that can meet both ISO 9001 and ASME Y14.5 standards. Also, precise material flow control analyses permit manufacturers can achieve superior component quality for applications across the various industries.
You Can Optimize Manufacturing Costs
The early detection of defects during the design phase through mold flow analysis helps eliminate expensive product rework and product rejection at the end. The methodology perfects material utilization which leads to decreased waste and superior cost-effectiveness. Engineers use the improved gate placement and cooling channel design to reduce manufacturing expenses while enhancing operational efficiency to shorten the product time to bring to the market.
You Can Speed up Production Cycles
The predictions generated through flow simulation analysis enable authorities to optimize their production cycle times. Following the processing method establishes appropriate levels of injection pressure and cooling rate for quick production turnaround. Because demand for products in the shortest time possible is critical in consumer goods and medical device manufacturing.
You Can Improve Mold Serviceability/Longevity
Mold analysis techniques lead to optimal cavity distribution. Also, it decreases the wear, and tear on production tools. The tooling extends its operational life by minimizing maintenance requirements. Besides, mold protection from thermal/mechanical stress becomes possible when simulation guides accurate temperature and pressure control.
When to Use Mold Flow Analysis?
The mold flow analysis can be entertained in certain conditions when you need to optimize your manufacturing design and everything central to your production process: Here are some primary aspects:
● Material Selection: Compare different materials to finalize the best one for your application.
● New Product Design: Embed assessment procedures into your mold design operations to identify and eliminate potential manufacturing flaws.
● Cost Reduction: Deciding to conduct modeling enables you to identify design issues. This eliminates the need for repetitive work and removes the requirement for prototype testing.
● For Complex Geometries/Designs/Patterns: Analyze complex product designs to iterate material flow behavior, and confirm that accurate filling.
● High Precision Applications: Use this to get high tolerances and precision for profound industries like aerospace and medical production.
Typical Issues Detected Prior In Mold Flow Analysis?
Let’s take a look at the common issues that could be detected in an effective mold flow analysis:

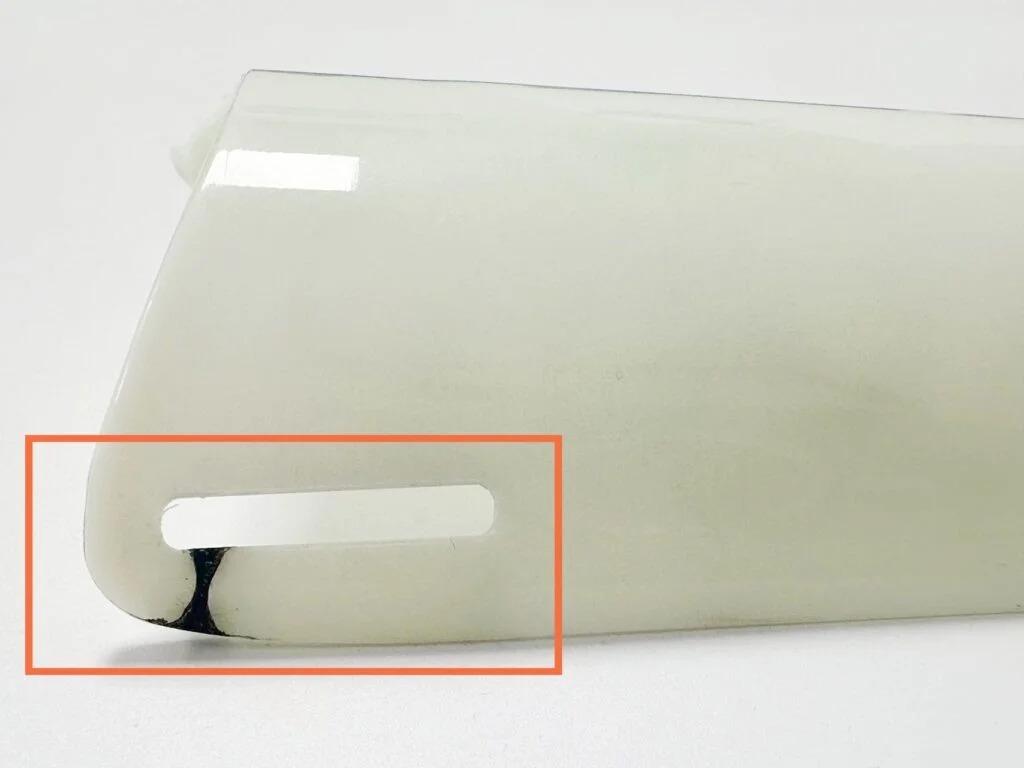

Air Traps
Generally, the cavity inside the mold traps air during material injection which forms air traps. The presence of such pockets interrupts both the structural quality and visual appearance of the final part. The software simulation predicts where air traps will occur and suggests ventilation placements alongside speed adjustment recommendations to achieve balanced material distribution.

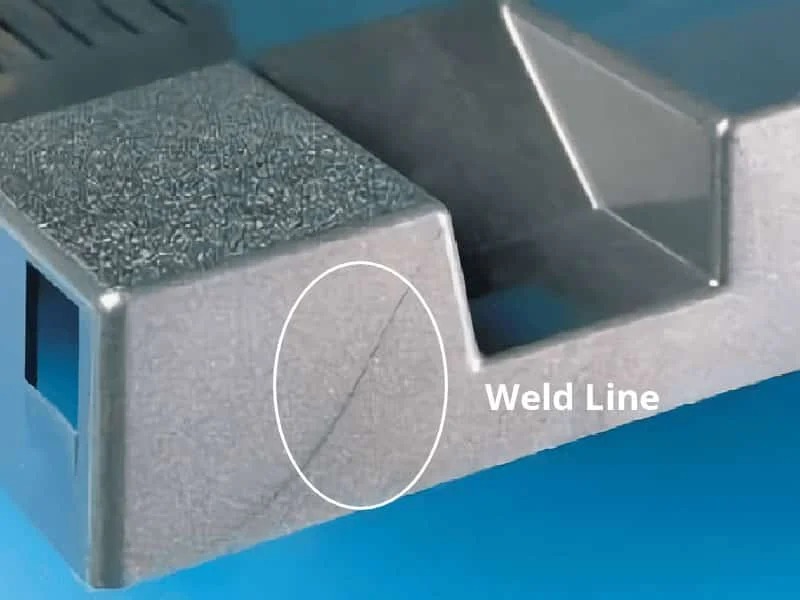

Weld Lines
When material flow fronts join together weld lines appear which produce weak bonds resulting in reduced joint strength. The selected simulation process identifies such weaknesses which can bring significant problems when materials face high-stress conditions. Engineers can diagnose weld line locations in the design stage and move gate positions to achieve stronger bonds.
Sink Marks
Surface depressions known as sink marks develop because of inconsistent cooling during production which causes material to contract. Molded part sections with increased thickness tend to develop these defects. Designers use cooling simulations to identify risk areas and develop optimized cooling channel designs that prevent sink marks from forming.
Part Deflection
In some cases, parts may experience unwanted bending, and warping from the combination of uneven material movement and cooling stresses that we can call part deflection. The functional performance and precise measurements of parts become compromised by such defects. Mold flow analysis identifies potential deflection problems by calculating material deformation while suggesting design modifications such as reinforcing critical regions and balancing flow rates.
Stand By Premium Part for Optimal Mold Flow Analysis
Businesses seek services related to optimal injection mold designs to meet their increasing industry demands. At Premium Parts, we utilize modern software, and technologies, and hold a team of high professionals who provide accurate and optimized services to our customers that meet their requirements and specifications.
Our engineers specialize in understanding precision manufacturing requirements and provide solutions that validate design integrity while protecting against product failures and optimizing manufacturing processes. In addition, our experts verify your projects fulfill strict requirements while delivering exceptional outcomes.
Do your manufacturing operations need an upgrade? Reach out to Premium Parts today! You can access our expert mold flow analysis solutions which will maximize your manufacturing efficiency.
Conclusion
Modern Manufacturing nowadays heavily relies on mold flow analysis. As it serves as an indispensable predictive tool for directing early design flaws. You can analyze to forecast material reactions to improve both injection molding techniques and reach desired accuracy levels. However, organizations that strictly comply with their product to ISO 9001 standards and implement ASME Y14.5 regulations achieve both top-quality control standards and exact measurements. The simulation process provides benefits through lower production costs
together with shorter product cycles while extending tooling life which is recognized in high-volume and custom product production. In addition, its relatively effective operation in aerospace, automotive production, and medical devices assists in getting desirable mold characteristics. Overall, by using the methodology, you can better your mold design without any need for prototype making and validating testing.
Frequently Asked Questions
Q1: Which materials gain the most benefit from mold flow analysis?
Although many materials can be simulated using this software. However, this computational analysis is widely utilized for accurate flow prediction of metal alloys, thermoplastics, and thermosets. This also helps you early in predicting challenges like warpage, flow imbalance, or shrinkage.
Q2: What is the relationship Between Mold Flow Analysis and DFM?
Manufacturers employ computational methodology to complement Design for Manufacturability by early finding design problems. Besides, it confirms finalized design flow standards, manufacturing capabilities, and eliminates the chances of defects occurrence.
Q3: What approach does this software utilize to improve precision?
You can simulate the flow patterns of your injection molding activity using mold flow analysis to get visualized details on flow, speed, pressure, and cooling patterns.
Q4: Can mold flow analysis provide useful results during low-volume manufacturing processes?
Yes, users get low-volume production with optimized designs at the start while minimizing the need for testing through repeated cycles.
Q5. Which industries heavily rely on mold flow analysis like software for their manufacturing?
Mold flow analysis plays a significant role in companies like automotive, aerospace, electronics, and medical devices.
